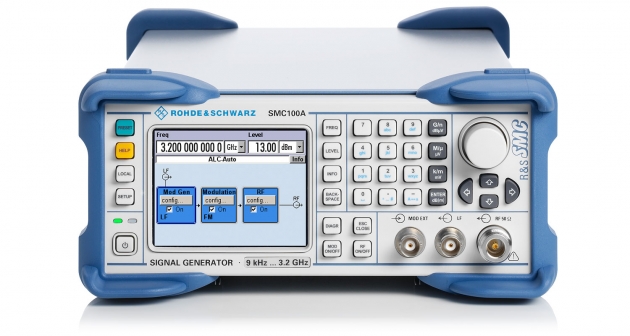

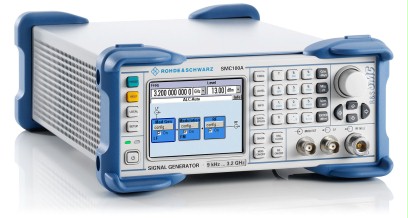

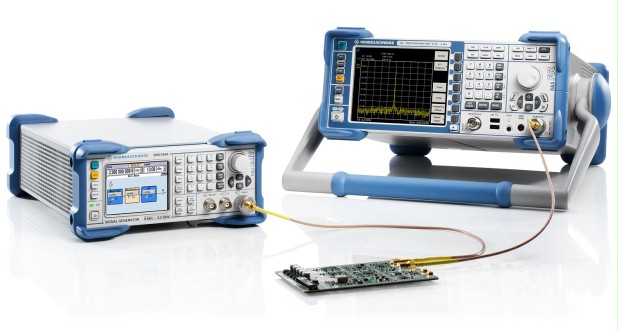

R&S SMC100A Signal Generator
主要特色
高性能，有吸引力的價格
靈活和通用的通用信號發生器
由於體積小，節省空間
最大限度地降低總擁有成本
很多應用領域的理想工具

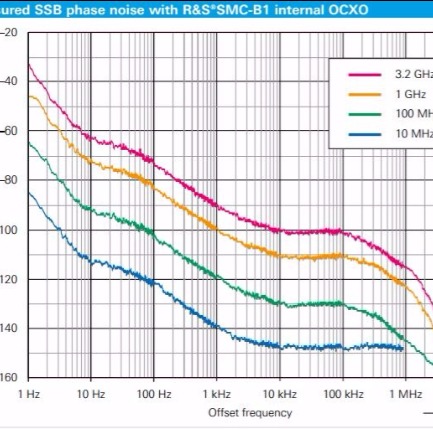

Low SSB phase noise of typ. –111 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
Wideband noise of typ. < –146 dBc (f > 1 MHz, carrier offset > 10 MHz, 1 Hz measurement bandwidth)
Nonharmonics of typ. < –72 dBc (f ≤ 1600 MHz, carrier offset > 10 kHz)
Level error < 0.9 dB
Frequency and level setting times <5 ms
Optional high-stability reference oscillator
主要特色
高性能，有吸引力的價格
靈活和通用的通用信號發生器
由於體積小，節省空間
最大限度地降低總擁有成本
很多應用領域的理想工具
Low SSB phase noise of typ. –111 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
Wideband noise of typ. < –146 dBc (f > 1 MHz, carrier offset > 10 MHz, 1 Hz measurement bandwidth)
Nonharmonics of typ. < –72 dBc (f ≤ 1600 MHz, carrier offset > 10 kHz)
Level error < 0.9 dB
Frequency and level setting times <5 ms
Optional high-stability reference oscillator
具有最佳性價比的信號發生器
頻率範圍9 kHz至1.1 GHz或3.2 GHz
最大輸出電位為 typ。 > +17 dBm
AM/FM/φM/pulse modulation provided as standard
High performance at an attractive price
Due to its low SSB phase noise, low wideband noise and excellent nonharmonic suppression, the R&S®SMC100A is suitable for all applications that require spectrally pure signals. This ensures that the performance of the device under test is measured and not that of the test instrument. The frequency stability of the R&S®SMC100A can be improved even further with an optional reference oscillator (R&S®SMC-B1) that can be plugged into the instrument by the user. The excellent level accuracy and repeatability of the R&S®SMC100A (level error < 0.9 dB) provides users with reliable measurement results. In manufacturing for instance, this leads to high and consistent production yields. Fast frequency and level setting permits the user to accelerate test sequences and in the end save time and money.
簡要規格
| Frequency | ||
| Frequency range | R&S®SMC-B101 frequency option | 9 kHz to 1.1 GHz |
| R&S®SMC-B103 frequency option | 9 kHz to 3.2 GHz | |
| Setting time | SCPI mode | |
| Level | ||
| Maximum output power | f = 200 kHz to 3.2 GHz | >+13 dBm |
| f ≥500 kHz | typ. >+17 dBm in overrange mode | |
| Level error | f = 200 kHz to 3.2 GHz | <0.9 dB |
| ALC ON, AUTO mode, T = 18°C to 33°C | ||
| Setting time | SCPI mode | <5 ms |
| Back-feed | 1 MHz ≤ f ≤ 1 GHz | 50 W |
| 1 GHz ≤ f ≤ 2 GHz | 25 W | |
| 2 GHz ≤ f ≤ 3.2 GHz | 10 W | |
| Maximum permissible DC voltage | 50 V | |
| Spectral purity | ||
| Nonharmonics | carrier offset > 10 kHz, f ≤1600 MHz | <-60 dBc (typ. -72 dBc) |
| SSB phase noise | f = 1 GHz carrier offset = 20 kHz 1 Hz measurement bandwidth |
<-105 dBc (typ. -111 dBc) |
| Wideband noise | f > 1 MHz, level > 5 dBm carrier offset > 10 MHz 1 Hz measurement bandwidth |
<-138 dBc (typ. -146 dBc) |
| Supported modulation modes | ||
| AM | standard | |
| AM depth | 0 % to 100 % | |
| FM/φM | standard | |
| Maximum FM deviation | f > 1.6 GHz | 4 MHz |
| Maximum φM deviation | f > 1.6 GHz | 40 rad |
| Pulse | standard | |
| Rise/fall time | <500 ns (typ. 100 ns) | |
| Minimum pulse width | with integrated pulse generator | 1 μs |
| ON/OFF ratio | >80 dB | |

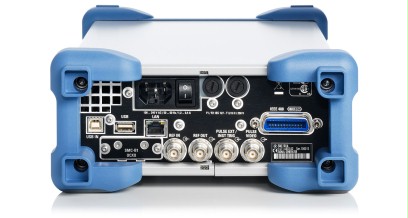

| Connectivity | ||
| Remote control | IEC/IEEE bus (with R&S®SMC-K4 option) | |
| Ethernet (TCP/IP) | ||
| USB | ||
| Peripherals | USB |
|
